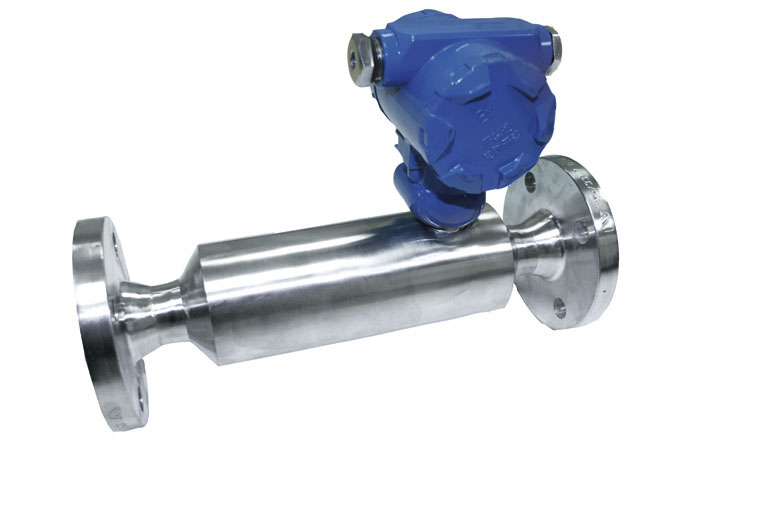

In-flow Density Meter DC-50
Features
  • Straight through flow design
  • Density accuracy up to 0.00025 g/cm3
  • Automatic temperature compensation
  • Accurately measures viscous liquids
  • Rigorous factory calibration and testing
  • Standard installation packs easily ties into process
  • No moving parts, virtually maintenance-free system
  • Hazardous area approvals
  • Flexible data transfer options

DC50 series of process liquid density meters has been carefully engineered to fit large range of applications within the oil and gas, petrochemical, chemical, food & beverage, metallurgy and other industries.

Use the proven vibrating element technique which is widely accepted as the most accurate method of continuous online density measurement, LEMIS Baltic engineers did new step ahead introducing unique proprietary design of streamlined resonant tube which is washed on either side by measured liquid. The new sensor allows the best signal stability at oscillating process pressure offering excellent repeatability under pipeline operating conditions.

An integral Pt100 temperature probe provides compensation of the density meter for temperature effect and allows calculation of reference density, API gravity, % concentration or specific gravity. A choice of wetted parts materials : from stainless steel for general industrial use, Ni-SpanC for most demanding applications as fiscal metering, and Hastelloy for applications where ultimate corrosion resistance is required. Large offer of factory pre-built installation packs allows quick and simple field installation.

Download printable data sheet (English) (PDF, 1251.92 KB)
